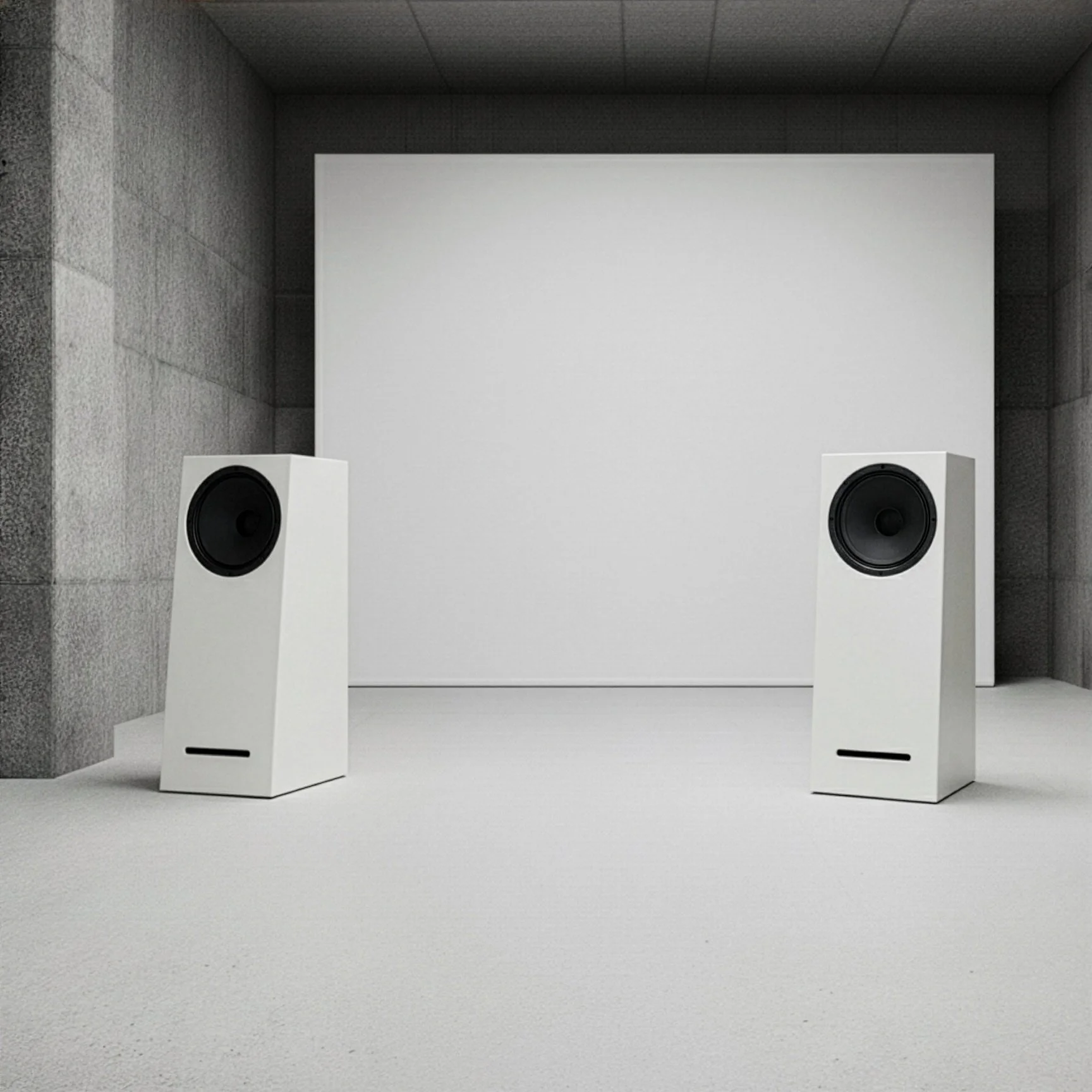

neuTON P250

2 Way Bass Reflex-High Efficiency Compression Driver Horn Speaker

The low frequency cone performs as a true 12” (300mm) bass diameter waveguide for higher frequencies. A unique metal throat transitions seamlessly to the horn, eliminating high frequency beaming. The result is a coaxial speaker with extremely consistent 90° coverage on a broadband basis.

Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature voice-coil and a reduced distortion design through saturated gap magnet geometry. The high frequency driver features a pure titanium diaphragm for high sensitivity and longevity, with diamond surround for resonance control and FerroFluid™ for increased power handling.

  • Speaker measurements
    36” height
    14.”5 width
    11” depth (top)
    13.75” depth (base)

    Weight
    35kg / 77 lb per speaker

    Volume
    82 l / 4800 cubic inches per speaker

  • Recommended Amplification: between 8 - 250 Watt / 8 ohms

    Tube - Class A - Class A/B - D Class high-fidelity power amplifier

    Power handling with high sensitivity provides high SPL (Sound Pressure Level) capability at 121dB

    Advanced high-slope J crossover network for constant coverage and smooth, natural midrange

    Consistent 90° broadband pattern control

    12” (300mm) woofer with Kevlar-reinforced cone with 2” (50mm) voice-coil + 10 exit (25mm) compression driver

  • Power Rating - IEC Longterm System Power Rating: 250 Watt / 8 ohms power handling with high SPL capability at 121dB.

    Frequency Range - (-10dB) 32 Hz – 20 kHz

    Sensitivity 95 dB (1 kHz - 20 kHz)

    Coverage Angle 90° conical, constant directivity

    Directivity Factor (Q) 8.7 (1k - 20kHz)

    Directivity Index (DI)9.4 dB (1k -20kHz)

    94 dB4 measured half-space

    99 dB5 computed for competitive comparison

    121 dB cont ave (124 dB peak)

  • neuTON P250

    LF Driver: 300 mm (12 in)

    HF Driver: compression driver, 25mm (1”)

    Low frequency cone performs as a true 12” (300mm) diameter

    Kevlar reinforced cone. Advanced high-slope crossover network for constant coverage and smooth, natural midrange.

    Waveguide for the high frequencies. 50 mm (2”) voice coil.
    JBL neodymium magnet compression driver, 25mm (1”) exit.
